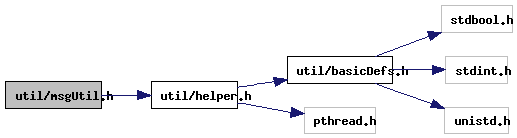

#include <util/helper.h>Include dependency graph for msgUtil.h:

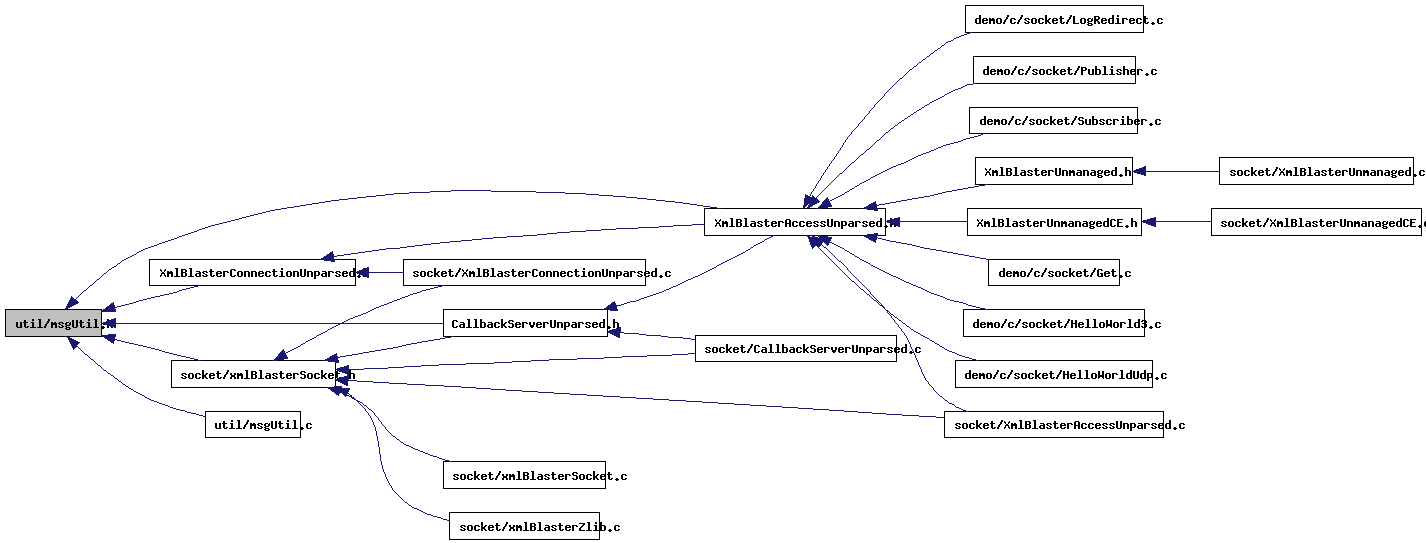

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | MsgUnit |
| Holds a message All member pointers are allocated with malloc(), you need to free() them Needs to be consistent with MsgUnitUnmanaged declaration in C# (for P/Invoke). More... | |
| struct | MsgUnitStructArr |
| Holds an array of Messages. More... | |
| struct | QosStructArr |
| Holds an array of QoS XML strings returned by unSubscribe() and erase(). More... | |
| struct | MsgRequestInfoStruct |
| Used to transport information back to callback functions. More... | |
Defines | |
| #define | MAX_ERRNO_LEN 256 |
| #define | XMLBLASTER_MAX_USAGE_LEN 2048 |
| #define | MAX_REQUESTID_LEN 256 |
| #define | MAX_SECRETSESSIONID_LEN 256 |
| #define | MAX_SESSIONID_LEN 256 |
| #define | MAX_METHODNAME_LEN 20 |
| #define | XMLBLASTER_CONNECT "connect" |
| #define | XMLBLASTER_DISCONNECT "disconnect" |
| #define | XMLBLASTER_PING "ping" |
| #define | XMLBLASTER_UPDATE "update" |
| #define | XMLBLASTER_UPDATE_ONEWAY "updateOneway" |
| #define | XMLBLASTER_PUBLISH "publish" |
| #define | XMLBLASTER_PUBLISH_ONEWAY "publishOneway" |
| #define | XMLBLASTER_GET "get" |
| #define | XMLBLASTER_SUBSCRIBE "subscribe" |
| #define | XMLBLASTER_UNSUBSCRIBE "unSubscribe" |
| #define | XMLBLASTER_ERASE "erase" |
| #define | XMLBLASTEREXCEPTION_ERRORCODE_LEN EXCEPTIONSTRUCT_ERRORCODE_LEN |
| #define | XMLBLASTEREXCEPTION_MESSAGE_LEN EXCEPTIONSTRUCT_MESSAGE_LEN |
Typedefs | |
| typedef BlobHolder | XmlBlasterBlob |
| Holds arbitrary raw data and its length, see helper.h. | |
| typedef MsgUnitStructArr | MsgUnitArr |
| Holds an array of Messages. | |
| typedef QosStructArr | QosArr |
| Holds an array of QoS XML strings returned by unSubscribe() and erase(). | |
| typedef MsgRequestInfoStruct | MsgRequestInfo |
| Used to transport information back to callback functions. | |
| typedef ExceptionStruct | XmlBlasterException |
Functions | |
| void | initializeXmlBlasterException (XmlBlasterException *xmlBlasterException) |
| Should be called on any xmlBlasterException before using it. | |
| const char * | getXmlBlasterVersion (void) |
| |
| void | xmlBlasterFree (char *p) |
| Frees the pointer with free(). | |
| void | freeMsgUnitData (MsgUnit *msgUnit) |
| Does not free the msgUnit itself. | |
| void | freeMsgUnit (MsgUnit *msgUnit) |
| Frees everything. | |
| void | freeMsgUnitArr (MsgUnitArr *msgUnitArr) |
| Frees everything inside MsgUnitArr and the struct MsgUnitArr itself. | |
| void | freeMsgUnitArrInternal (MsgUnitArr *msgUnitArr) |
| Frees everything inside MsgUnitArr but NOT the struct MsgUnitArr itself. | |
| void | freeQosArr (QosArr *qosArr) |
| Frees everything inside QosArr and the struct QosArr itself. | |
| char * | messageUnitToXml (MsgUnit *msg) |
| NOTE: You need to free the returned pointer with xmlBlasterFree() or directly with free()! | |
| char * | messageUnitToXmlLimited (MsgUnit *msg, int maxContentDumpLen) |
| NOTE: You need to free the returned pointer with xmlBlasterFree() or directly with free()! | |
| hostent * | gethostbyname_re (const char *host, struct hostent *hostbuf, char **tmphstbuf, size_t *hstbuflen, char errP[256]) |
| #define MAX_ERRNO_LEN 256 |
Definition at line 18 of file msgUtil.h.
Referenced by createCallbackServer(), and initConnection().
| #define MAX_METHODNAME_LEN 20 |
Definition at line 25 of file msgUtil.h.
Referenced by encodeSocketMessage(), handleMessage(), parseSocketData(), and sendData().
| #define MAX_REQUESTID_LEN 256 |
Definition at line 20 of file msgUtil.h.
Referenced by handleMessage(), parseSocketData(), and sendData().
| #define MAX_SECRETSESSIONID_LEN 256 |
| #define MAX_SESSIONID_LEN 256 |
Definition at line 22 of file msgUtil.h.
Referenced by encodeSocketMessage(), and parseSocketData().
| #define XMLBLASTER_CONNECT "connect" |
| #define XMLBLASTER_DISCONNECT "disconnect" |
| #define XMLBLASTER_ERASE "erase" |
| #define XMLBLASTER_GET "get" |
| #define XMLBLASTER_MAX_USAGE_LEN 2048 |
Definition at line 19 of file msgUtil.h.
Referenced by main(), xmlBlasterAccessUnparsedUsage(), xmlBlasterUnmanagedCEUsage(), and xmlBlasterUnmanagedUsage().
| #define XMLBLASTER_PING "ping" |
| #define XMLBLASTER_PUBLISH "publish" |
Definition at line 31 of file msgUtil.h.
Referenced by xmlBlasterPublish(), and xmlBlasterPublishArr().
| #define XMLBLASTER_PUBLISH_ONEWAY "publishOneway" |
Definition at line 32 of file msgUtil.h.
Referenced by xbl_isOneway(), and xmlBlasterPublishOneway().
| #define XMLBLASTER_SUBSCRIBE "subscribe" |
| #define XMLBLASTER_UNSUBSCRIBE "unSubscribe" |
| #define XMLBLASTER_UPDATE_ONEWAY "updateOneway" |
| #define XMLBLASTEREXCEPTION_ERRORCODE_LEN EXCEPTIONSTRUCT_ERRORCODE_LEN |
Definition at line 96 of file msgUtil.h.
Referenced by checkArgs(), convertToXmlBlasterException(), handleMessage(), initConnection(), initialize(), interceptUpdate(), mutexUnlock(), myUpdate(), parseSocketData(), postSendEvent(), preSendEvent(), sendData(), xmlBlasterConnect(), xmlBlasterErase(), xmlBlasterGet(), xmlBlasterInitQueue(), xmlBlasterSubscribe(), and xmlBlasterUnSubscribe().
| #define XMLBLASTEREXCEPTION_MESSAGE_LEN EXCEPTIONSTRUCT_MESSAGE_LEN |
Definition at line 97 of file msgUtil.h.
Referenced by checkArgs(), convertToXmlBlasterException(), createCallbackServer(), handleMessage(), initConnection(), initialize(), interceptUpdate(), mutexUnlock(), myUpdate(), postSendEvent(), preSendEvent(), sendData(), xmlBlasterConnect(), xmlBlasterErase(), xmlBlasterGet(), xmlBlasterInitQueue(), xmlBlasterSubscribe(), and xmlBlasterUnSubscribe().
| typedef struct MsgRequestInfoStruct MsgRequestInfo |
Used to transport information back to callback functions.
| typedef struct MsgUnitStructArr MsgUnitArr |
Holds an array of Messages.
| typedef struct QosStructArr QosArr |
Holds an array of QoS XML strings returned by unSubscribe() and erase().
| typedef BlobHolder XmlBlasterBlob |
| typedef ExceptionStruct XmlBlasterException |
| void freeMsgUnit | ( | MsgUnit * | msgUnit | ) |
Frees everything.
Definition at line 150 of file msgUtil.c.
References freeMsgUnitData().
Here is the call graph for this function:
| void freeMsgUnitArr | ( | MsgUnitArr * | msgUnitArr | ) |
Frees everything inside MsgUnitArr and the struct MsgUnitArr itself.
| msgUnitArr | The struct to free, passing NULL is OK |
Definition at line 99 of file msgUtil.c.
References freeMsgUnitArrInternal().
Referenced by main(), parseQosArr(), sendResponseOrException(), xmlBlasterUnmanagedCEGet(), and xmlBlasterUnmanagedGet().
Here is the call graph for this function:
| void freeMsgUnitArrInternal | ( | MsgUnitArr * | msgUnitArr | ) |
Frees everything inside MsgUnitArr but NOT the struct MsgUnitArr itself.
| msgUnitArr | The struct internals to free, passing NULL is OK |
Definition at line 110 of file msgUtil.c.
References freeMsgUnitData(), MsgUnitStructArr::len, and MsgUnitStructArr::msgUnitArr.
Referenced by freeMsgUnitArr(), and main().
Here is the call graph for this function:
| void freeMsgUnitData | ( | MsgUnit * | msgUnit | ) |
Does not free the msgUnit itself.
Definition at line 124 of file msgUtil.c.
References MsgUnit::content, MsgUnit::contentLen, MsgUnit::key, MsgUnit::qos, and MsgUnit::responseQos.
Referenced by freeMsgUnit(), freeMsgUnitArrInternal(), main(), myUpdate(), xmlBlasterUnmanagedCEPublish(), and xmlBlasterUnmanagedCEPublishOneway().
| void freeQosArr | ( | QosArr * | qosArr | ) |
Frees everything inside QosArr and the struct QosArr itself.
| qosArr | The struct to free, passing NULL is OK |
Definition at line 83 of file msgUtil.c.
References QosStructArr::len, and QosStructArr::qosArr.
Referenced by main(), xmlBlasterUnmanagedCEErase(), xmlBlasterUnmanagedCEUnSubscribe(), xmlBlasterUnmanagedErase(), and xmlBlasterUnmanagedUnSubscribe().
| struct hostent* gethostbyname_re | ( | const char * | host, | |
| struct hostent * | hostbuf, | |||
| char ** | tmphstbuf, | |||
| size_t * | hstbuflen, | |||
| char | errP[256] | |||
| ) | [read] |
| const char* getXmlBlasterVersion | ( | void | ) |
"0.848 #1207M"
Definition at line 47 of file msgUtil.c.
Referenced by main(), and xmlBlasterUnmanagedCEVersion().
| void initializeXmlBlasterException | ( | XmlBlasterException * | xmlBlasterException | ) |
Should be called on any xmlBlasterException before using it.
Definition at line 207 of file msgUtil.c.
References ExceptionStruct::errorCode, ExceptionStruct::message, and ExceptionStruct::remote.
Referenced by checkArgs(), handleMessage(), sendData(), xmlBlasterUnmanagedCEErase(), xmlBlasterUnmanagedCEUnSubscribe(), xmlBlasterUnmanagedErase(), and xmlBlasterUnmanagedUnSubscribe().

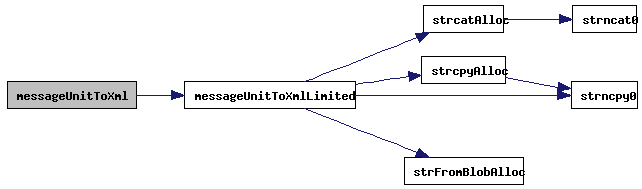

| char* messageUnitToXml | ( | MsgUnit * | msg | ) |
NOTE: You need to free the returned pointer with xmlBlasterFree() or directly with free()!
Definition at line 199 of file msgUtil.c.
References messageUnitToXmlLimited().
Referenced by myUpdate().
Here is the call graph for this function:

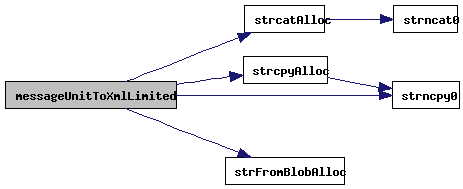

| char* messageUnitToXmlLimited | ( | MsgUnit * | msg, | |
| int | maxContentDumpLen | |||
| ) |
NOTE: You need to free the returned pointer with xmlBlasterFree() or directly with free()!
| msg | The message | |
| maxContentDumpLen | for -1 get the complete content, else limit the content to the given number of bytes |
Definition at line 165 of file msgUtil.c.
References MsgUnit::content, MsgUnit::contentLen, MsgUnit::key, MsgUnit::qos, SNPRINTF, strcatAlloc(), strcpyAlloc(), strFromBlobAlloc(), and strncpy0().
Referenced by main(), messageUnitToXml(), and myUpdate().
Here is the call graph for this function:
| void xmlBlasterFree | ( | char * | p | ) |
Frees the pointer with free().
Users of this library can use xmlBlasterFree() instead of free(). This can be helpful on Windows and if this client library is a DLL and compiled with /MT but the client code is not (or vice versa). In such a case the executable uses different runtime libraries with different instances of malloc/free. On UNIX we don't need this function but it doesn't harm either.
Definition at line 72 of file msgUtil.c.
Referenced by interceptUpdate(), main(), myUpdate(), xmlBlasterUnmanagedCEConnect(), xmlBlasterUnmanagedCEDisconnect(), xmlBlasterUnmanagedCEErase(), xmlBlasterUnmanagedCEExceptionFree(), xmlBlasterUnmanagedCEFree(), xmlBlasterUnmanagedCEFreePP(), xmlBlasterUnmanagedCEGet(), xmlBlasterUnmanagedCEPing(), xmlBlasterUnmanagedCESubscribe(), and xmlBlasterUnmanagedCEUnSubscribe().
