org::xmlBlaster::util::qos::QosData Class Reference

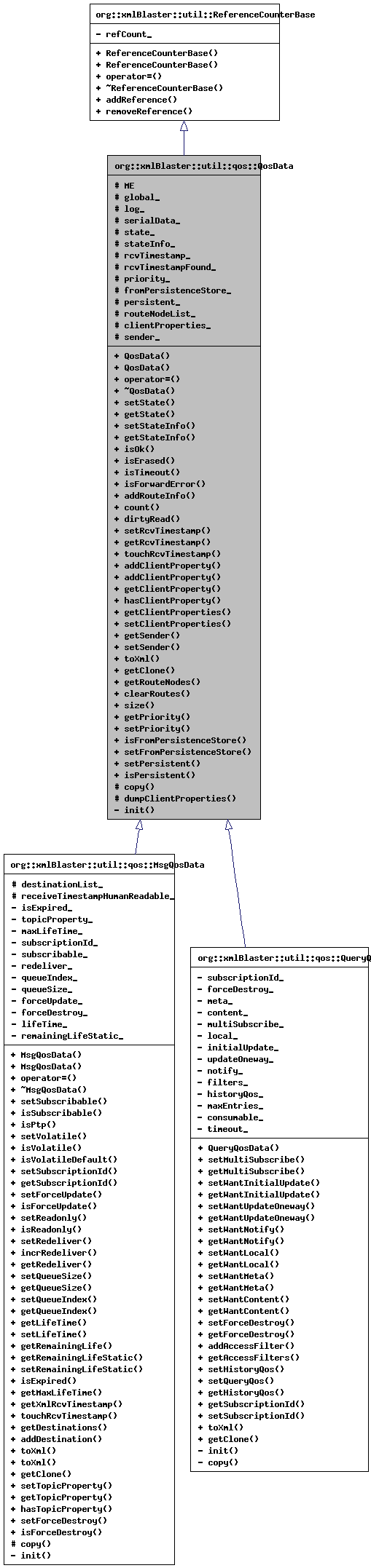

Inheritance diagram for org::xmlBlaster::util::qos::QosData:

Inheritance graph
[legend]

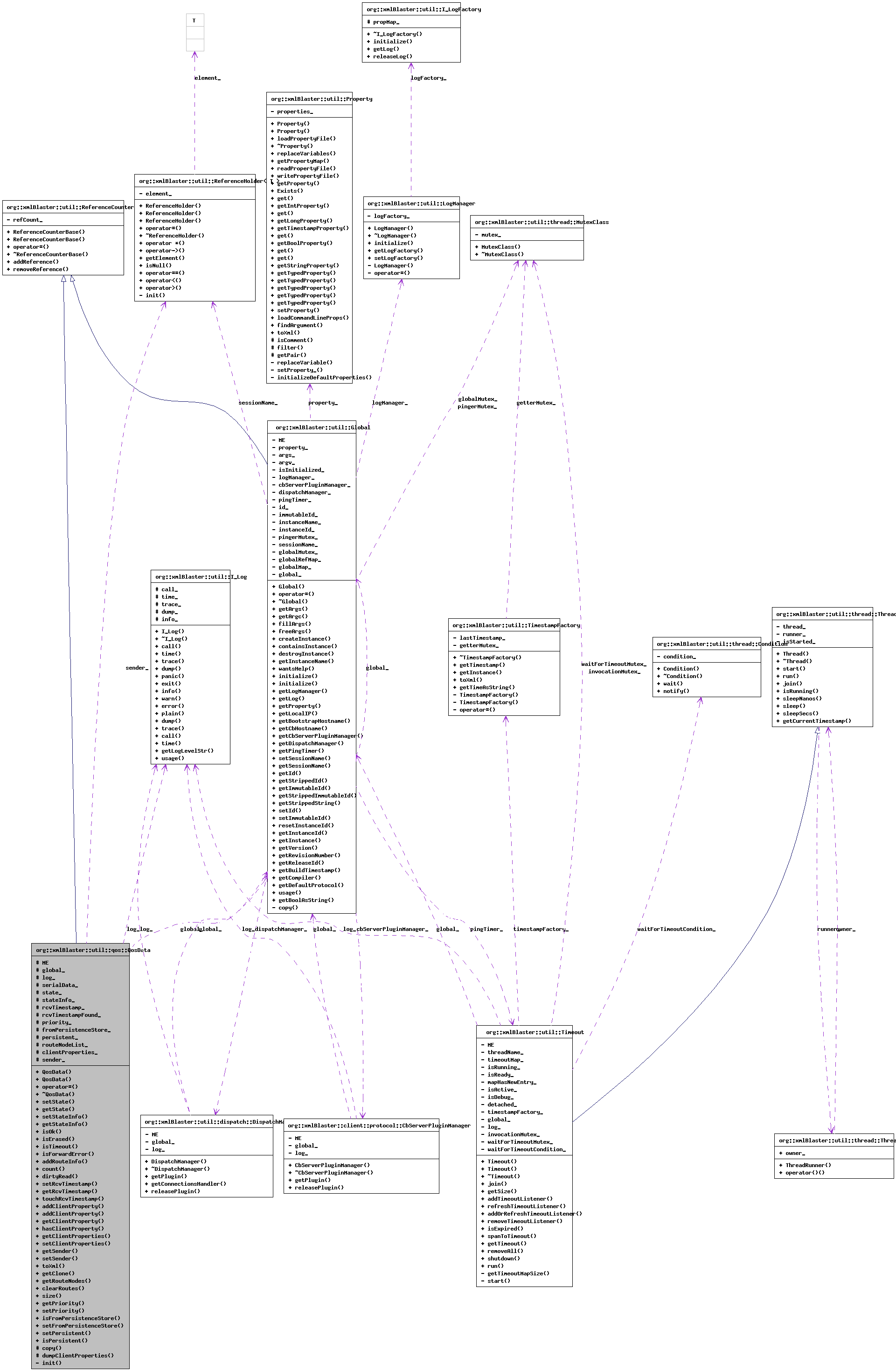

Collaboration diagram for org::xmlBlaster::util::qos::QosData:

Collaboration graph
[legend]
List of all members.

Public Types

typedef std::map< std::string,
org::xmlBlaster::util::qos::ClientProperty > 		ClientPropertyMap

Public Member Functions

 QosData (org::xmlBlaster::util::Global &global, std::string &serialData="")
 Constructs the specialized quality of service object for a publish() or update() call.
 QosData (QosData &data)
QosData & operator= (QosData &data)
virtual ~QosData ()
void setState (std::string &state)

Parameters:
state The state of an update message

std::string getState ()
 Access state of message on update().
void setStateInfo (std::string &stateInfo)

Parameters:
state The human readable state text of an update message

std::string getStateInfo ()
 Access state of message on update().
bool isOk ()
 True if the message is OK on update().
bool isErased ()
 True if the message was erased by timer or by a client invoking erase().
bool isTimeout ()
 True if a timeout on this message occurred.
bool isForwardError ()
 True on cluster forward problems.
void addRouteInfo (org::xmlBlaster::util::cluster::RouteInfo &routeInfo)
 Adds a new route hop to the QoS of this message.
int count (org::xmlBlaster::util::cluster::NodeId &nodeId)
 Check if the message has already been at the given node (circulating message).
bool dirtyRead (org::xmlBlaster::util::cluster::NodeId nodeId)
 Check if the message has already been at the given node (circulating message).
void setRcvTimestamp (Timestamp rcvTimestamp)
 The approximate receive timestamp (UTC time), when message arrived in requestBroker.publish() method.
Timestamp getRcvTimestamp ()
 The approximate receive timestamp (UTC time), when message arrived in requestBroker.publish() method.
void touchRcvTimestamp ()
 Set timestamp to current time.
void addClientProperty (ClientProperty &clientProperty)
 Add a client property.
template<typename T_VALUE>
void addClientProperty (std::string &name, T_VALUE &value, std::string &type="", std::string &encoding="", std::string &charset="")
 Add a client property key and value.
template<typename T_VALUE>
T_VALUE getClientProperty (std::string &name, T_VALUE &defaultValue)
 Access the value for the given name, if not found returns the defaultValue.
bool hasClientProperty (std::string &name)
ClientPropertyMap & getClientProperties ()
void setClientProperties (ClientPropertyMap &cm)
org::xmlBlaster::util::SessionNameRef getSender ()
 Access sender unified naming object.
void setSender (org::xmlBlaster::util::SessionNameRef sender)
 Access sender name.
virtual std::string toXml (std::string &extraOffset="")
 Dump state of this object into a XML ASCII std::string.
virtual QosData * getClone ()
 Allocate a clone, the derived classes need to implement this method.
RouteVector getRouteNodes ()
void clearRoutes ()
int size ()
org::xmlBlaster::util::PriorityEnum getPriority ()
 Message priority.
void setPriority (org::xmlBlaster::util::PriorityEnum priority)
 Set message priority value, PriorityEnum.NORM_PRIORITY (5) is default.
bool isFromPersistenceStore ()
 Internal use only, is this message sent from the persistence layer?
void setFromPersistenceStore (bool fromPersistenceStore)
 Internal use only, set if this message sent from the persistence layer.
void setPersistent (bool persistent)

Parameters:
persistent mark a message as persistent

bool isPersistent ()

Returns:
true/false


Protected Member Functions

void copy (QosData &data)
std::string dumpClientProperties (std::string &extraOffset, bool clearText)

Protected Attributes

std::string ME
org::xmlBlaster::util::Global & global_
org::xmlBlaster::util::I_Log & log_
std::string serialData_
std::string state_
 the state of the message, defaults to "OK" if no state is returned
std::string stateInfo_
 Human readable information.
Timestamp rcvTimestamp_
 The receive timestamp (UTC time), when message arrived in requestBroker.publish() method.
bool rcvTimestampFound_
org::xmlBlaster::util::PriorityEnum priority_
 The priority of the message.
bool fromPersistenceStore_
 Internal use only, is this message sent from the persistence layer?
bool persistent_
RouteVector routeNodeList_
 ArrayList containing org::xmlBlaster::util::cluster::RouteInfo objects.
ClientPropertyMap clientProperties_
org::xmlBlaster::util::SessionNameRef sender_
 the sender (publisher) of this message (unique loginName)

Detailed Description

Definition at line 57 of file QosData.h.

Member Typedef Documentation

typedef std::map<std::string, org::xmlBlaster::util::qos::ClientProperty> org::xmlBlaster::util::qos::QosData::ClientPropertyMap

Definition at line 95 of file QosData.h.

Constructor & Destructor Documentation

org::xmlBlaster::util::qos::QosData::QosData ( org::xmlBlaster::util::Global &  global,
std::string &  serialData = ""
)

Constructs the specialized quality of service object for a publish() or update() call.

Parameters:
The factory which knows how to serialize and parse me

Referenced by getClone().

org::xmlBlaster::util::qos::QosData::QosData ( QosData &  data  )

Definition at line 93 of file QosData.cpp.

References copy().

org::xmlBlaster::util::qos::QosData::~QosData (  )  [virtual]

Definition at line 111 of file QosData.cpp.

Member Function Documentation

void org::xmlBlaster::util::qos::QosData::copy ( QosData &  data  )  [protected]

Definition at line 62 of file QosData.cpp.

References clientProperties_, fromPersistenceStore_, getSender(), global_, persistent_, priority_, rcvTimestamp_, rcvTimestampFound_, sender_, serialData_, state_, and stateInfo_.

Referenced by org::xmlBlaster::util::qos::MsgQosData::copy(), operator=(), org::xmlBlaster::util::qos::MsgQosData::operator=(), and QosData().

std::string org::xmlBlaster::util::qos::QosData::dumpClientProperties ( std::string &  extraOffset,
bool  clearText
) [protected]

QosData & org::xmlBlaster::util::qos::QosData::operator= ( QosData &  data  )

Definition at line 104 of file QosData.cpp.

References copy().

void org::xmlBlaster::util::qos::QosData::setState ( std::string &  state  )

Parameters:
state The state of an update message

string org::xmlBlaster::util::qos::QosData::getState (  )

Access state of message on update().

Returns:
OK (Other values are not yet supported)

Definition at line 120 of file QosData.cpp.

References state_.

Referenced by org::xmlBlaster::client::qos::PublishQos::getState(), and org::xmlBlaster::client::qos::GetReturnQos::getState().

void org::xmlBlaster::util::qos::QosData::setStateInfo ( std::string &  stateInfo  )

Parameters:
state The human readable state text of an update message

string org::xmlBlaster::util::qos::QosData::getStateInfo (  )

Access state of message on update().

Returns:
The human readable info text

Definition at line 130 of file QosData.cpp.

References stateInfo_.

Referenced by org::xmlBlaster::client::qos::PublishQos::getStateInfo().

bool org::xmlBlaster::util::qos::QosData::isOk (  )

True if the message is OK on update().

Definition at line 135 of file QosData.cpp.

References state_, and org::xmlBlaster::util::Constants::STATE_OK.

Referenced by org::xmlBlaster::client::qos::UpdateQos::isOk(), and org::xmlBlaster::client::qos::GetReturnQos::isOk().

bool org::xmlBlaster::util::qos::QosData::isErased (  )

True if the message was erased by timer or by a client invoking erase().

Definition at line 140 of file QosData.cpp.

References state_, and org::xmlBlaster::util::Constants::STATE_ERASED.

Referenced by org::xmlBlaster::client::qos::UpdateQos::isErased(), and org::xmlBlaster::client::qos::GetReturnQos::isErased().

bool org::xmlBlaster::util::qos::QosData::isTimeout (  )

True if a timeout on this message occurred.

Timeouts are spanned by the publisher and thrown by xmlBlaster on timeout to indicate for example STALE messages or any other user problem domain specific event.

Definition at line 145 of file QosData.cpp.

References state_, and org::xmlBlaster::util::Constants::STATE_TIMEOUT.

Referenced by org::xmlBlaster::client::qos::UpdateQos::isTimeout(), and org::xmlBlaster::client::qos::GetReturnQos::isTimeout().

bool org::xmlBlaster::util::qos::QosData::isForwardError (  )

True on cluster forward problems.

Definition at line 150 of file QosData.cpp.

References state_, and org::xmlBlaster::util::Constants::STATE_FORWARD_ERROR.

Referenced by org::xmlBlaster::client::qos::UpdateQos::isForwardError().

void org::xmlBlaster::util::qos::QosData::addRouteInfo ( org::xmlBlaster::util::cluster::RouteInfo &  routeInfo  )

Adds a new route hop to the QoS of this message.

The added routeInfo is assumed to be one stratum closer to the master So we will rearrange the stratum here. The given stratum in routeInfo is used to recalculate the other nodes as well.

Definition at line 155 of file QosData.cpp.

References org::xmlBlaster::util::cluster::RouteInfo::getStratum(), and routeNodeList_.

int org::xmlBlaster::util::qos::QosData::count ( org::xmlBlaster::util::cluster::NodeId &  nodeId  )

Check if the message has already been at the given node (circulating message).

Returns:
How often the message has travelled the node already

Definition at line 170 of file QosData.cpp.

References routeNodeList_.

bool org::xmlBlaster::util::qos::QosData::dirtyRead ( org::xmlBlaster::util::cluster::NodeId  nodeId  )

Check if the message has already been at the given node (circulating message).

Returns:
How often the message has travelled the node already

Definition at line 182 of file QosData.cpp.

References routeNodeList_.

void org::xmlBlaster::util::qos::QosData::setRcvTimestamp ( Timestamp  rcvTimestamp  )

The approximate receive timestamp (UTC time), when message arrived in requestBroker.publish() method.


In milliseconds elapsed since midnight, January 1, 1970 UTC

Definition at line 192 of file QosData.cpp.

References rcvTimestamp_.

Timestamp org::xmlBlaster::util::qos::QosData::getRcvTimestamp (  )

The approximate receive timestamp (UTC time), when message arrived in requestBroker.publish() method.


In milliseconds elapsed since midnight, January 1, 1970 UTC

Definition at line 197 of file QosData.cpp.

References rcvTimestamp_.

Referenced by org::xmlBlaster::client::qos::GetReturnQos::getRcvTime(), org::xmlBlaster::client::qos::GetReturnQos::getRcvTimestamp(), and org::xmlBlaster::util::qos::MsgQosData::getRemainingLife().

void org::xmlBlaster::util::qos::QosData::touchRcvTimestamp (  )

Set timestamp to current time.

Reimplemented in org::xmlBlaster::util::qos::MsgQosData.

Definition at line 202 of file QosData.cpp.

References org::xmlBlaster::util::TimestampFactory::getInstance, org::xmlBlaster::util::TimestampFactory::getTimestamp(), and rcvTimestamp_.

void org::xmlBlaster::util::qos::QosData::addClientProperty ( ClientProperty &  clientProperty  )

Add a client property.

Parameters:
clientProperty
See also:
ClientProperty

Definition at line 207 of file QosData.cpp.

References clientProperties_, and org::xmlBlaster::util::qos::ClientProperty::getName().

Referenced by org::xmlBlaster::test::TestClientProperty::testQosData().

template<typename T_VALUE>
void org::xmlBlaster::util::qos::QosData::addClientProperty ( std::string &  name,
T_VALUE &  value,
std::string &  type = "",
std::string &  encoding = "",
std::string &  charset = ""
)

Add a client property key and value.

If you use other character sets than US-ASCII you should set the type to Constants::TYPE_BLOB (which will force a Base64 encoding).

Parameters:
name The key name in US-ASCII encoding
value "vector<unsigned char>" and "unsigned char *" is treated as a blob
type Optionally you can force another type than "String", for example Constants::TYPE_DOUBLE if the pointer contains such a number as a string representation.
encoding How the data is transferred, org::xmlBlaster::util::Constants::ENCODING_BASE64 or ""
See also:
ClientProperty::ClientProperty

Definition at line 320 of file QosData.h.

References clientProperties_.

template<typename T_VALUE>
T_VALUE org::xmlBlaster::util::qos::QosData::getClientProperty ( std::string &  name,
T_VALUE &  defaultValue
)

Access the value for the given name, if not found returns the defaultValue.

Returns:
A copy of the given defaultValue if none was found

Definition at line 329 of file QosData.h.

References clientProperties_.

Referenced by org::xmlBlaster::test::TestClientProperty::testQosData().

bool org::xmlBlaster::util::qos::QosData::hasClientProperty ( std::string &  name  )

QosData::ClientPropertyMap & org::xmlBlaster::util::qos::QosData::getClientProperties (  )

Definition at line 217 of file QosData.cpp.

References clientProperties_.

Referenced by org::xmlBlaster::client::qos::PublishQos::getClientProperties(), org::xmlBlaster::client::qos::GetReturnQos::getClientProperties(), and org::xmlBlaster::test::TestClientProperty::testQosData().

void org::xmlBlaster::util::qos::QosData::setClientProperties ( ClientPropertyMap &  cm  )

Definition at line 222 of file QosData.cpp.

References clientProperties_.

SessionNameRef org::xmlBlaster::util::qos::QosData::getSender (  )

Access sender unified naming object.

Returns:
sessionName of sender or null if not known

Definition at line 297 of file QosData.cpp.

References sender_.

Referenced by copy(), org::xmlBlaster::client::qos::PublishQos::getSender(), and org::xmlBlaster::client::qos::GetReturnQos::getSender().

void org::xmlBlaster::util::qos::QosData::setSender ( org::xmlBlaster::util::SessionNameRef  sender  )

Access sender name.

Parameters:
loginName of sender

Definition at line 302 of file QosData.cpp.

References sender_.

Referenced by org::xmlBlaster::util::dispatch::ConnectionsHandler::publish(), and org::xmlBlaster::util::queue::MsgQueueEntry::setSender().

std::string org::xmlBlaster::util::qos::QosData::toXml ( std::string &  extraOffset = ""  )  [virtual]

Dump state of this object into a XML ASCII std::string.


Needs to be implemented by derived classes.

Parameters:
extraOffset indenting of tags for nice output
Returns:
internal state of the message QoS as a XML ASCII std::string

Reimplemented in org::xmlBlaster::util::qos::MsgQosData, and org::xmlBlaster::util::qos::QueryQosData.

Definition at line 324 of file QosData.cpp.

Referenced by org::xmlBlaster::client::protocol::corba::CorbaConnection::copyToCorba(), org::xmlBlaster::util::queue::MsgQueueEntry::getEmbeddedObject(), org::xmlBlaster::client::protocol::socket::SocketDriver::publish(), and size().

QosData * org::xmlBlaster::util::qos::QosData::getClone (  )  [virtual]

Allocate a clone, the derived classes need to implement this method.

Returns:
The caller needs to free it with 'delete'.

Reimplemented in org::xmlBlaster::util::qos::MsgQosData, and org::xmlBlaster::util::qos::QueryQosData.

Definition at line 319 of file QosData.cpp.

References QosData().

RouteVector org::xmlBlaster::util::qos::QosData::getRouteNodes (  )

Definition at line 227 of file QosData.cpp.

References routeNodeList_.

Referenced by org::xmlBlaster::client::qos::GetReturnQos::getRouteNodes().

void org::xmlBlaster::util::qos::QosData::clearRoutes (  )

Definition at line 232 of file QosData.cpp.

References routeNodeList_.

int org::xmlBlaster::util::qos::QosData::size (  )

Definition at line 237 of file QosData.cpp.

References toXml().

PriorityEnum org::xmlBlaster::util::qos::QosData::getPriority (  )

Message priority.

Returns:
priority 0-9
See also:
org.xmlBlaster.util.def.PriorityEnum

Definition at line 247 of file QosData.cpp.

References priority_.

Referenced by org::xmlBlaster::client::qos::PublishQos::getPriority(), org::xmlBlaster::client::qos::GetReturnQos::getPriority(), org::xmlBlaster::util::queue::PublishQueueEntry::PublishQueueEntry(), org::xmlBlaster::util::dispatch::ConnectionsHandler::queuePublish(), org::xmlBlaster::util::dispatch::ConnectionsHandler::queueSubscribe(), and org::xmlBlaster::test::TestQueue::testWithOnePublishEntry().

void org::xmlBlaster::util::qos::QosData::setPriority ( org::xmlBlaster::util::PriorityEnum  priority  )

Set message priority value, PriorityEnum.NORM_PRIORITY (5) is default.

org::xmlBlaster::util::PriorityEnum.MIN_PRIORITY (0) is slowest whereas org::xmlBlaster::util::PriorityEnum.MAX_PRIORITY (9) is highest priority.

See also:
org.xmlBlaster.util.def.PriorityEnum

Definition at line 258 of file QosData.cpp.

References priority_.

Referenced by org::xmlBlaster::client::qos::PublishQos::setPriority().

bool org::xmlBlaster::util::qos::QosData::isFromPersistenceStore (  )

Internal use only, is this message sent from the persistence layer?

Returns:
true/false

Definition at line 267 of file QosData.cpp.

References fromPersistenceStore_.

void org::xmlBlaster::util::qos::QosData::setFromPersistenceStore ( bool  fromPersistenceStore  )

Internal use only, set if this message sent from the persistence layer.

Parameters:
true/false

Definition at line 276 of file QosData.cpp.

References fromPersistenceStore_.

void org::xmlBlaster::util::qos::QosData::setPersistent ( bool  persistent  )

Parameters:
persistent mark a message as persistent

Definition at line 284 of file QosData.cpp.

References persistent_.

Referenced by org::xmlBlaster::client::qos::SubscribeQos::setPersistent(), and org::xmlBlaster::client::qos::PublishQos::setPersistent().

bool org::xmlBlaster::util::qos::QosData::isPersistent (  )

Returns:
true/false

Definition at line 292 of file QosData.cpp.

References persistent_.

Referenced by org::xmlBlaster::client::qos::GetReturnQos::isPersistent().

Member Data Documentation

std::string org::xmlBlaster::util::qos::QosData::ME [protected]

Definition at line 64 of file QosData.h.

Referenced by org::xmlBlaster::util::qos::QueryQosData::QueryQosData().

org::xmlBlaster::util::Global& org::xmlBlaster::util::qos::QosData::global_ [protected]

Definition at line 65 of file QosData.h.

Referenced by copy(), org::xmlBlaster::util::qos::MsgQosData::getTopicProperty(), and org::xmlBlaster::util::qos::MsgQosData::setReadonly().

org::xmlBlaster::util::I_Log& org::xmlBlaster::util::qos::QosData::log_ [protected]

Definition at line 66 of file QosData.h.

std::string org::xmlBlaster::util::qos::QosData::serialData_ [protected]

Definition at line 67 of file QosData.h.

Referenced by copy().

std::string org::xmlBlaster::util::qos::QosData::state_ [protected]

the state of the message, defaults to "OK" if no state is returned

Definition at line 70 of file QosData.h.

Referenced by copy(), getState(), isErased(), isForwardError(), isOk(), and isTimeout().

std::string org::xmlBlaster::util::qos::QosData::stateInfo_ [protected]

Human readable information.

Definition at line 72 of file QosData.h.

Referenced by copy(), and getStateInfo().

Timestamp org::xmlBlaster::util::qos::QosData::rcvTimestamp_ [protected]

The receive timestamp (UTC time), when message arrived in requestBroker.publish() method.


In nanoseconds elapsed since midnight, January 1, 1970 UTC

Definition at line 79 of file QosData.h.

Referenced by copy(), getRcvTimestamp(), setRcvTimestamp(), and touchRcvTimestamp().

bool org::xmlBlaster::util::qos::QosData::rcvTimestampFound_ [protected]

Definition at line 80 of file QosData.h.

Referenced by copy().

org::xmlBlaster::util::PriorityEnum org::xmlBlaster::util::qos::QosData::priority_ [protected]

The priority of the message.

Definition at line 83 of file QosData.h.

Referenced by copy(), getPriority(), and setPriority().

bool org::xmlBlaster::util::qos::QosData::fromPersistenceStore_ [protected]

Internal use only, is this message sent from the persistence layer?

Definition at line 86 of file QosData.h.

Referenced by copy(), isFromPersistenceStore(), and setFromPersistenceStore().

bool org::xmlBlaster::util::qos::QosData::persistent_ [protected]

Definition at line 88 of file QosData.h.

Referenced by copy(), isPersistent(), and setPersistent().

RouteVector org::xmlBlaster::util::qos::QosData::routeNodeList_ [protected]

ArrayList containing org::xmlBlaster::util::cluster::RouteInfo objects.

Definition at line 93 of file QosData.h.

Referenced by addRouteInfo(), clearRoutes(), count(), dirtyRead(), and getRouteNodes().

ClientPropertyMap org::xmlBlaster::util::qos::QosData::clientProperties_ [protected]

Definition at line 98 of file QosData.h.

Referenced by addClientProperty(), copy(), getClientProperties(), getClientProperty(), and setClientProperties().

org::xmlBlaster::util::SessionNameRef org::xmlBlaster::util::qos::QosData::sender_ [mutable, protected]

the sender (publisher) of this message (unique loginName)

Definition at line 101 of file QosData.h.

Referenced by copy(), getSender(), and setSender().

The documentation for this class was generated from the following files:
