org::xmlBlaster::client::protocol::socket::SocketDriver

org::xmlBlaster::client::protocol::socket::SocketDriver Class Reference

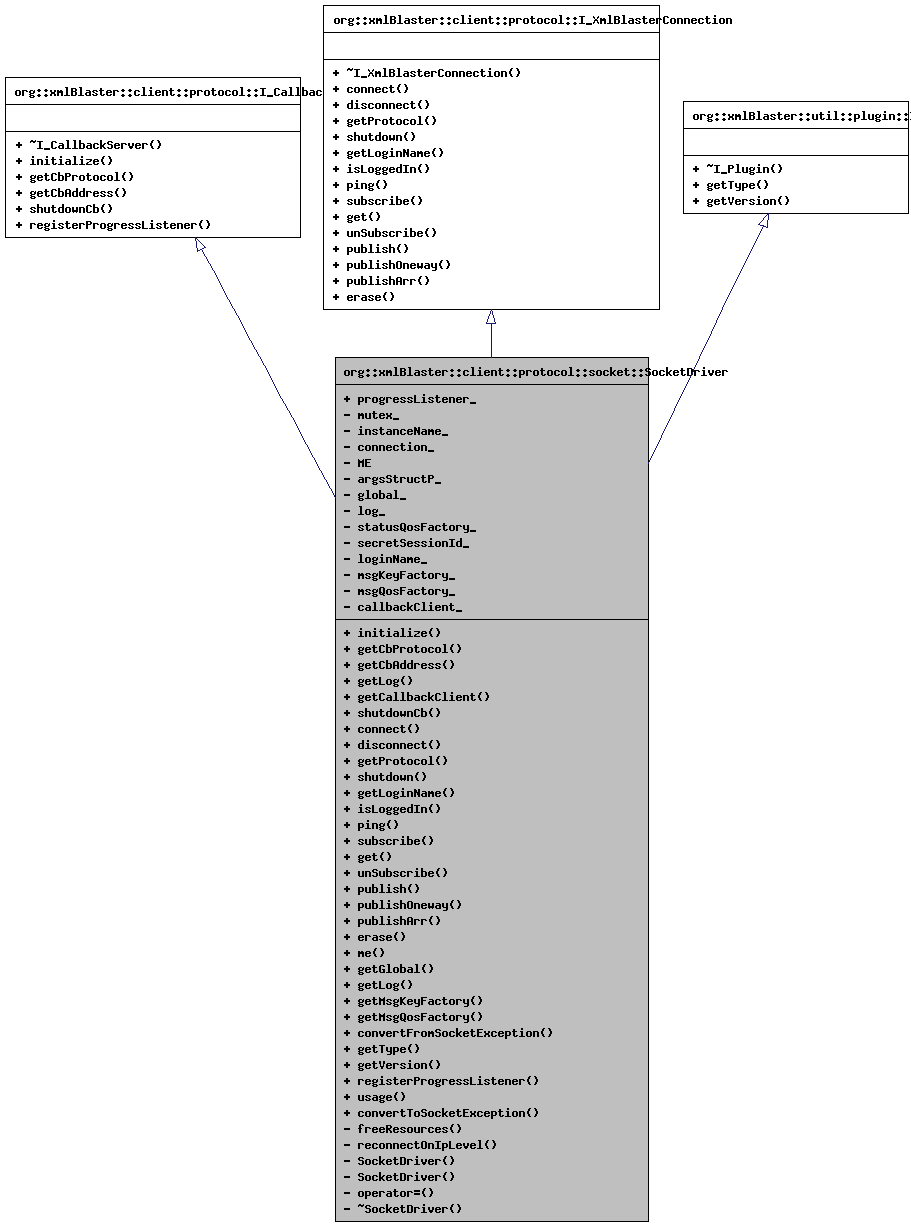

Inheritance diagram for org::xmlBlaster::client::protocol::socket::SocketDriver:

[legend]Collaboration diagram for org::xmlBlaster::client::protocol::socket::SocketDriver:


Public Member Functions
void	initialize (std::string &name, org::xmlBlaster::client::I_Callback &client)
	Initialize and start the callback server.
std::string	getCbProtocol ()
	Returns the 'well known' protocol type.
std::string	getCbAddress ()
	Returns the current callback address.
org::xmlBlaster::util::I_Log &	getLog ()
I_Callback *	getCallbackClient ()
	Returns: 0 if the client has not registered its update()
bool	shutdownCb ()
	Stop the server.
org::xmlBlaster::util::qos::ConnectReturnQosRef	connect (org::xmlBlaster::util::qos::ConnectQosRef &qos)
	connect() is a login or authentication as well, the authentication schema is transported in the qos.
bool	disconnect (org::xmlBlaster::util::qos::DisconnectQos &qos)
	Logout from xmlBlaster.
std::string	getProtocol ()
	Returns: The connection protocol name "IOR" or "SOCKET" etc.
bool	shutdown ()
	Called when going to POLLING mode.
std::string	getLoginName ()
bool	isLoggedIn ()
std::string	ping (std::string &qos)
org::xmlBlaster::client::qos::SubscribeReturnQos	subscribe (org::xmlBlaster::client::key::SubscribeKey &key, org::xmlBlaster::client::qos::SubscribeQos &qos)
std::vector< org::xmlBlaster::util::MessageUnit >	get (org::xmlBlaster::client::key::GetKey &key, org::xmlBlaster::client::qos::GetQos &qos)
std::vector< org::xmlBlaster::client::qos::UnSubscribeReturnQos >	unSubscribe (org::xmlBlaster::client::key::UnSubscribeKey &key, org::xmlBlaster::client::qos::UnSubscribeQos &qos)
org::xmlBlaster::client::qos::PublishReturnQos	publish (org::xmlBlaster::util::MessageUnit &msgUnit)
void	publishOneway (std::vector< org::xmlBlaster::util::MessageUnit > &msgUnitArr)
std::vector< org::xmlBlaster::client::qos::PublishReturnQos >	publishArr (std::vector< org::xmlBlaster::util::MessageUnit > &msgUnitArr)
std::vector< org::xmlBlaster::client::qos::EraseReturnQos >	erase (org::xmlBlaster::client::key::EraseKey &key, org::xmlBlaster::client::qos::EraseQos &qos)
std::string &	me ()
org::xmlBlaster::util::Global &	getGlobal ()
org::xmlBlaster::util::I_Log &	getLog ()
org::xmlBlaster::util::key::MsgKeyFactory &	getMsgKeyFactory ()
org::xmlBlaster::util::qos::MsgQosFactory &	getMsgQosFactory ()
org::xmlBlaster::util::XmlBlasterException	convertFromSocketException (struct::ExceptionStruct &ex)
std::string	getType ()
	Get the name of the plugin.
std::string	getVersion ()
	Get the version of the plugin.
org::xmlBlaster::client::protocol::I_ProgressListener *	registerProgressListener (org::xmlBlaster::client::protocol::I_ProgressListener *listener)
	See also: org::xmlBlaster::client::protocol::I_CallbackServer::registerProgressListener
Static Public Member Functions
static std::string	usage ()
static struct::ExceptionStruct	convertToSocketException (org::xmlBlaster::util::XmlBlasterException &ex)
Public Attributes
org::xmlBlaster::client::protocol::I_ProgressListener *	progressListener_
Friends
class	SocketDriverFactory

Detailed Description

Definition at line 40 of file SocketDriver.h.

Member Function Documentation

void org::xmlBlaster::client::protocol::socket::SocketDriver::initialize	(	std::string &	name,
		org::xmlBlaster::client::I_Callback &	client
	)			`[virtual]`

Initialize and start the callback server.

This is guaranteed to be invoked after the default constructor.

Parameters:

	glob	The global handle with your environment settings
	name	The login name of the client, for logging only
	client	Your implementation to receive the callback messages from xmlBlaster

Implements org::xmlBlaster::client::protocol::I_CallbackServer.

string org::xmlBlaster::client::protocol::socket::SocketDriver::getCbProtocol ( ) [virtual]

Returns the 'well known' protocol type.

Returns:: E.g. "RMI", "SOCKET", "XMLRPC"

Implements org::xmlBlaster::client::protocol::I_CallbackServer.

Definition at line 411 of file SocketDriver.cpp.

References org::xmlBlaster::util::Constants::SOCKET.

string org::xmlBlaster::client::protocol::socket::SocketDriver::getCbAddress ( ) [virtual]

Returns the current callback address.

Returns:: "rmi://develop.MarcelRuff.info:1099/xmlBlasterCB", "127.128.2.1:7607", "http://XMLRPC" or null if not known

Implements org::xmlBlaster::client::protocol::I_CallbackServer.

Definition at line 416 of file SocketDriver.cpp.

References XmlBlasterAccessUnparsed::callbackP, catch_MACRO, and org::xmlBlaster::util::lexical_cast().

org::xmlBlaster::util::I_Log& org::xmlBlaster::client::protocol::socket::SocketDriver::getLog ( )

Definition at line 95 of file SocketDriver.h.

I_Callback * org::xmlBlaster::client::protocol::socket::SocketDriver::getCallbackClient ( )

Returns:: 0 if the client has not registered its update()

Definition at line 382 of file SocketDriver.cpp.

int org::xmlBlaster::client::protocol::socket::SocketDriver::shutdownCb ( ) [virtual]

Stop the server.

Returns:: true if everything went fine.

Implements org::xmlBlaster::client::protocol::I_CallbackServer.

Definition at line 428 of file SocketDriver.cpp.

References XmlBlasterAccessUnparsed::callbackP.

ConnectReturnQosRef org::xmlBlaster::client::protocol::socket::SocketDriver::connect ( org::xmlBlaster::util::qos::ConnectQosRef & qos ) [virtual]

connect() is a login or authentication as well, the authentication schema is transported in the qos.

Parameters:

	qos	The authentication and other informations
	client	A handle to your callback if desired or null

Returns:: org::xmlBlaster::util::qos::ConnectReturnQos

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 436 of file SocketDriver.cpp.

References org::xmlBlaster::util::I_Log::call(), XmlBlasterAccessUnparsed::callbackP, catch_MACRO, XmlBlasterAccessUnparsed::connect, org::xmlBlaster::util::qos::storage::CbQueueProperty::getCurrentCallbackAddress(), org::xmlBlaster::util::qos::ConnectQosData::getSessionCbQueueProperty(), org::xmlBlaster::util::lexical_cast(), org::xmlBlaster::util::qos::ConnectQosFactory::readObject(), org::xmlBlaster::util::Constants::SOCKET, and org::xmlBlaster::util::I_Log::trace().

int org::xmlBlaster::client::protocol::socket::SocketDriver::disconnect ( org::xmlBlaster::util::qos::DisconnectQos & qos ) [virtual]

Logout from xmlBlaster.

Parameters:

qos

The QoS or null

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 475 of file SocketDriver.cpp.

References org::xmlBlaster::util::I_Log::call(), catch_MACRO, XmlBlasterAccessUnparsed::disconnect, and org::xmlBlaster::util::qos::DisconnectQos::toXml().

string org::xmlBlaster::client::protocol::socket::SocketDriver::getProtocol ( ) [virtual]

Returns:: The connection protocol name "IOR" or "SOCKET" etc.

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 491 of file SocketDriver.cpp.

References org::xmlBlaster::util::Constants::SOCKET.

int org::xmlBlaster::client::protocol::socket::SocketDriver::shutdown ( ) [virtual]

Called when going to POLLING mode.

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 497 of file SocketDriver.cpp.

References org::xmlBlaster::util::I_Log::call().

string org::xmlBlaster::client::protocol::socket::SocketDriver::getLoginName ( ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 506 of file SocketDriver.cpp.

int org::xmlBlaster::client::protocol::socket::SocketDriver::isLoggedIn ( ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 511 of file SocketDriver.cpp.

References XmlBlasterAccessUnparsed::isConnected.

std::string org::xmlBlaster::client::protocol::socket::SocketDriver::ping ( std::string & qos ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

SubscribeReturnQos org::xmlBlaster::client::protocol::socket::SocketDriver::subscribe	(	org::xmlBlaster::client::key::SubscribeKey &	key,
		org::xmlBlaster::client::qos::SubscribeQos &	qos
	)			`[virtual]`

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 536 of file SocketDriver.cpp.

References catch_MACRO, org::xmlBlaster::util::COMMUNICATION_NOCONNECTION, org::xmlBlaster::util::qos::StatusQosFactory::readObject(), XmlBlasterAccessUnparsed::subscribe, org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), and org::xmlBlaster::client::key::UnSubscribeKey::toXml().

vector< MessageUnit > org::xmlBlaster::client::protocol::socket::SocketDriver::get	(	org::xmlBlaster::client::key::GetKey &	key,
		org::xmlBlaster::client::qos::GetQos &	qos
	)			`[virtual]`

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 554 of file SocketDriver.cpp.

References catch_MACRO, org::xmlBlaster::util::COMMUNICATION_NOCONNECTION, XmlBlasterAccessUnparsed::get, org::xmlBlaster::util::qos::MsgQosFactory::readObject(), org::xmlBlaster::util::key::MsgKeyFactory::readObject(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), and org::xmlBlaster::client::key::UnSubscribeKey::toXml().

vector< UnSubscribeReturnQos > org::xmlBlaster::client::protocol::socket::SocketDriver::unSubscribe	(	org::xmlBlaster::client::key::UnSubscribeKey &	key,
		org::xmlBlaster::client::qos::UnSubscribeQos &	qos
	)			`[virtual]`

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 588 of file SocketDriver.cpp.

References catch_MACRO, org::xmlBlaster::util::COMMUNICATION_NOCONNECTION, org::xmlBlaster::util::qos::StatusQosFactory::readObject(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), org::xmlBlaster::client::key::UnSubscribeKey::toXml(), and XmlBlasterAccessUnparsed::unSubscribe.

PublishReturnQos org::xmlBlaster::client::protocol::socket::SocketDriver::publish ( org::xmlBlaster::util::MessageUnit & msgUnit ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 610 of file SocketDriver.cpp.

void org::xmlBlaster::client::protocol::socket::SocketDriver::publishOneway ( std::vector< org::xmlBlaster::util::MessageUnit > & msgUnitArr ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

std::vector<org::xmlBlaster::client::qos::PublishReturnQos> org::xmlBlaster::client::protocol::socket::SocketDriver::publishArr ( std::vector< org::xmlBlaster::util::MessageUnit > & msgUnitArr ) [virtual]

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

vector< EraseReturnQos > org::xmlBlaster::client::protocol::socket::SocketDriver::erase	(	org::xmlBlaster::client::key::EraseKey &	key,
		org::xmlBlaster::client::qos::EraseQos &	qos
	)			`[virtual]`

Implements org::xmlBlaster::client::protocol::I_XmlBlasterConnection.

Definition at line 730 of file SocketDriver.cpp.

References catch_MACRO, org::xmlBlaster::util::COMMUNICATION_NOCONNECTION, XmlBlasterAccessUnparsed::erase, and org::xmlBlaster::util::qos::StatusQosFactory::readObject().

std::string& org::xmlBlaster::client::protocol::socket::SocketDriver::me ( )

Definition at line 132 of file SocketDriver.h.

org::xmlBlaster::util::Global& org::xmlBlaster::client::protocol::socket::SocketDriver::getGlobal ( )

Definition at line 133 of file SocketDriver.h.

org::xmlBlaster::util::I_Log& org::xmlBlaster::client::protocol::socket::SocketDriver::getLog ( )

Definition at line 134 of file SocketDriver.h.

org::xmlBlaster::util::key::MsgKeyFactory& org::xmlBlaster::client::protocol::socket::SocketDriver::getMsgKeyFactory ( )

Definition at line 135 of file SocketDriver.h.

org::xmlBlaster::util::qos::MsgQosFactory& org::xmlBlaster::client::protocol::socket::SocketDriver::getMsgQosFactory ( )

Definition at line 136 of file SocketDriver.h.

string org::xmlBlaster::client::protocol::socket::SocketDriver::usage ( ) [static]

Definition at line 767 of file SocketDriver.cpp.

References xmlBlasterAccessUnparsedUsage().

Referenced by org::xmlBlaster::util::Global::usage().

org::xmlBlaster::util::XmlBlasterException org::xmlBlaster::client::protocol::socket::SocketDriver::convertFromSocketException ( struct::ExceptionStruct & ex )

ExceptionStruct org::xmlBlaster::client::protocol::socket::SocketDriver::convertToSocketException ( org::xmlBlaster::util::XmlBlasterException & ex ) [static]

Definition at line 789 of file SocketDriver.cpp.

References org::xmlBlaster::util::XmlBlasterException::getErrorCodeStr(), and org::xmlBlaster::util::XmlBlasterException::getMessage().

std::string org::xmlBlaster::client::protocol::socket::SocketDriver::getType ( ) [virtual]

Get the name of the plugin.

Returns:: "SOCKET" I_Plugin

Implements org::xmlBlaster::util::plugin::I_Plugin.

Definition at line 151 of file SocketDriver.h.

References org::xmlBlaster::util::Constants::SOCKET.

std::string org::xmlBlaster::client::protocol::socket::SocketDriver::getVersion ( ) [virtual]

Get the version of the plugin.

Returns:: "1.0" I_Plugin

Implements org::xmlBlaster::util::plugin::I_Plugin.

Definition at line 158 of file SocketDriver.h.

I_ProgressListener * org::xmlBlaster::client::protocol::socket::SocketDriver::registerProgressListener ( org::xmlBlaster::client::protocol::I_ProgressListener * listener ) [virtual]
